Vivo V11 Pro EDL Flashing: Vivo V11 Pro Flashing With the EDL, We use EDL only When Device Completely Dead. Please Don't try on...
Vivo V11 Pro EDL Flashing:

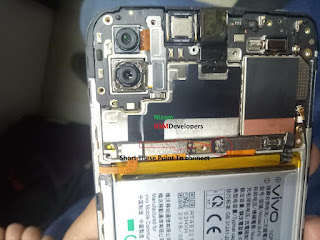

Vivo V11 Pro Flashing With the EDL, We use EDL only When Device Completely Dead. Please Don't try on a Working Device. i have include a Image with Pinout Finder So use them to boot the Phone in edl. Then Flash using the below Guide.
Note:
  • Follow the steps correctly otherwise you may brick your device. We are not responsible for any damage to your phone.
  • It will erase all your personal data including data of internal storage, so we advise you first to take a complete backup of your phone and then proceed.
  • Ensure that your phone has at least 50-60% charged to prevent the accidental shutdown in-between the process.
Read Also-
Requirements-

How to Install official Firmware on Vivo V11 Pro-
The Whole Process Complete In 2 Steps-
  • Driver Installation
  • Software Upgrade
Driver Installation-
1- Download and install Qualcomm driver. While installing driver avoid using cable for successful installation.

2- After installation, connect Phone to PC using USB cable.

3- While connecting to PC, phone should be switched off and press volume up & down as boot key.

4- If it makes Qualcomm port, then driver has been successfully installed.
Software Upgrade-
Step: 1- Download the QPST tool & driver and Rom File From above and extract in Folder,

Step: 2- Make sure your device has the Power to support flashing.

Step: 3- Run QFIL tool.Rom Extract folder,

Step: 4- Click on Browse under the Programmer path to select MBN File.

Step: 5- As soon as the MBN file is selected, Select Build will automatically select the Update or Stock ROM.
Step: 6- Click on Load XML, select rawprogram_unsparse_without_qcn.xml and then choose Patch0.xml
Load XML comes with two option:
a- rawprogram_unsparse_without_qcn.xml : On choosing this file, data will not be lost.
b- rawprogram_unsparse.xml : Will lose RF Calibration data, IMEI and WiFi/Bluetooth Address.
Step: 7- Connect Phont to PC and  reboot to edl by the help of Provided Pinout finder..

Step: 8- Click on Select Port and choose the port.

Step: 9- Click on Download to start flashing.

Step: 10- Unplug USB cable, when Finish Download appears.

Note: Do not unplug cable when Reset Phone or waiting for Reset Phone is in the process.

So This Is A Complete Guide to Install stock Rom on Vivo V11 Pro if you have any question Let Us know Via Comment,
